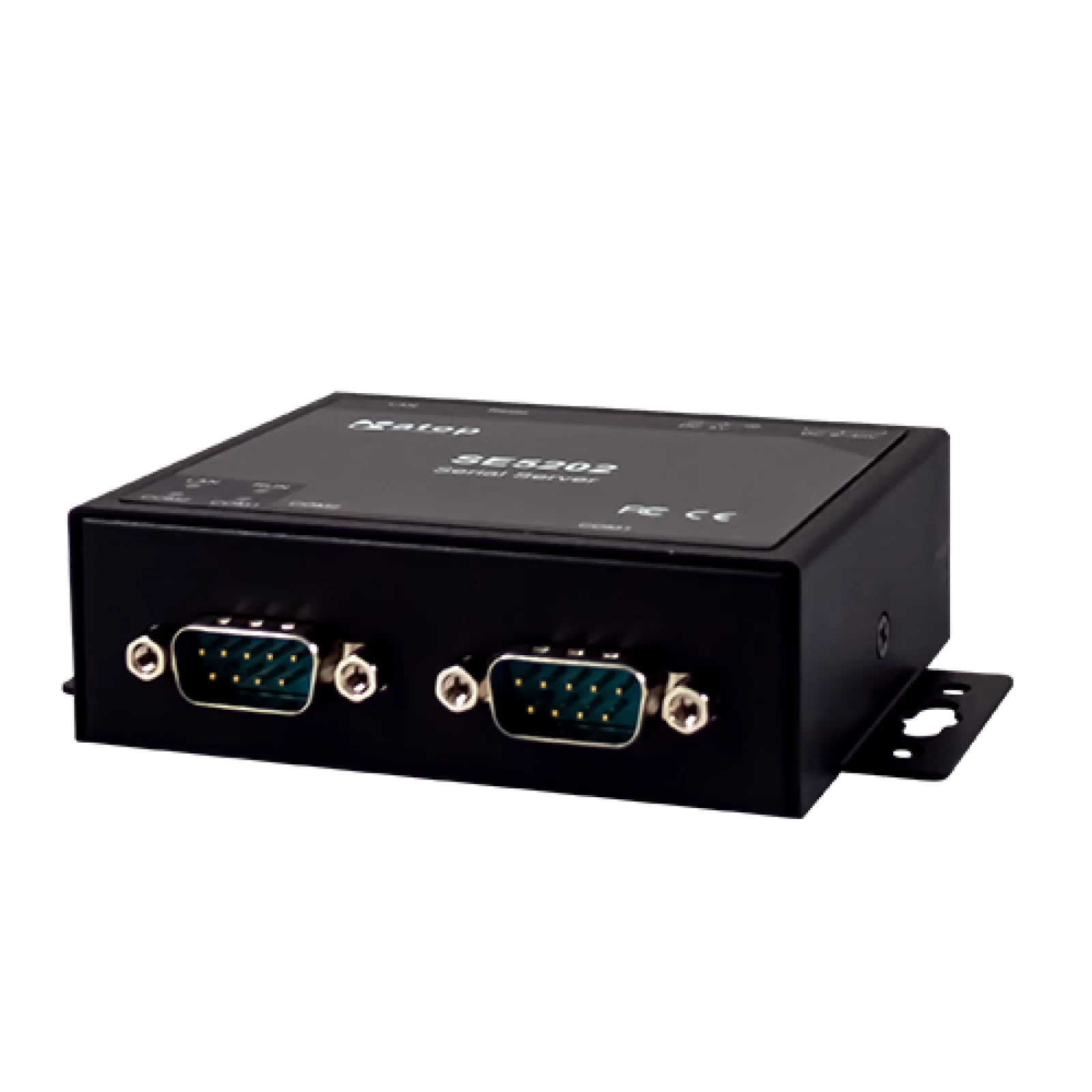

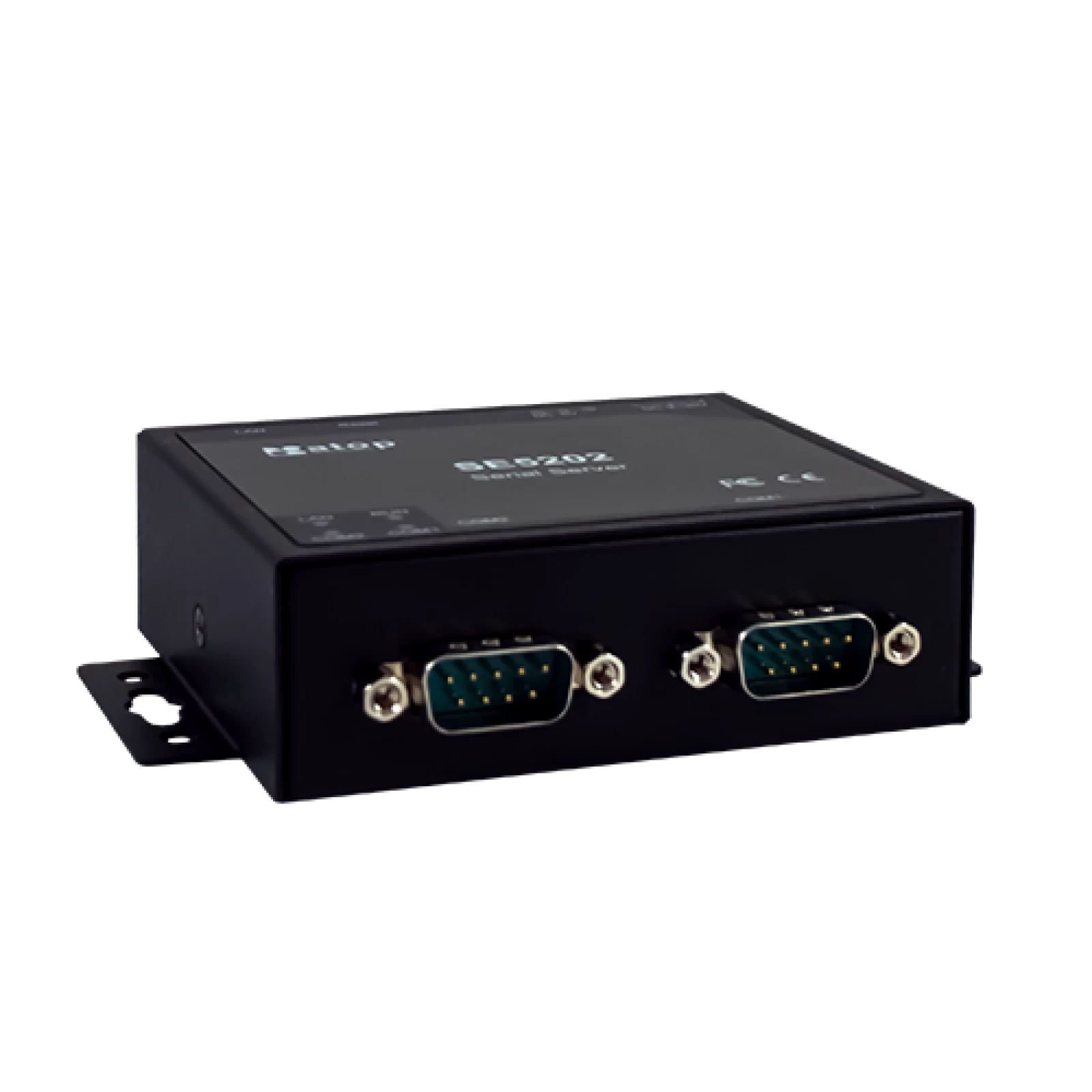

Despite Ethernet having become the new backbone standard of Industrial Automation, Serial devices still remain highly relevant today, with numerous devices installed on sites worldwide. So with ATOP’s SE5202 Series, you can transform any serial device into an Ethernet-capable one, allowing you to control and monitor your legacy serial devices via your LAN or WAN – or even over the internet.

With such connectivity, the amount of time required to configure or troubleshoot a serial device located on a factory floor or in a remote location is eliminated. And with such Ethernet-based connectivity, serial devices can be integrated into modern practices such as Industry 4.0 and IIoT, allowing you to extend their lifetime and avoid wholesale device upgrades in the near future.

Featuring 2 x software-selectable Serial Port and 1 x RJ45 Port or SFP Slot, the SE5202 Series is a simple-to-install device, with easy configurations options such as Telnet, Web browser, or other Windows utilities. And using the VirtualCOM software, Windows-based applications can access serial devices by mapping the virtual com ports to the SE5202 serial server series.

Encased in a rugged metal housing offering high EMC protection, the SE5202 Series is ideal for industrial and manufacturing automation applications, such as PLCs, HMIs, Barcode Scanners, Data Terminals, Electronic Kanbans, Shop Floor Control Systems, and Pick-to-Light Systems.

Network Interface
Ethernet Port	1x 10/100BASE-T(X) RJ-45 or 1x100BASE-FX SFP Slot
Compliance	IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE-T(X) and 100BASE-FX

Serial Interface
Connector	9-Pin D-Sub9 connector(Male, -DB version) or 5-Pin Terminal block (-TB version)
Ports	2
Mode	1x RS-232(Full-function DB9)/RS-485(2 and 4 wire)/RS-422, software selectable 1x RS-232/RS-485(2 and 4 wire)/RS-422, software selectable
Baud Rate	1200~230,400 bps
Parity	None, Odd, Even, Space, Mark
Data Bits	7, 8
Stop Bits	1, 2
Flow Control	None, Xon/Xoff, RTS/CTS (RS-232 only)

Power	Value
Connector	3-Pin 5.08mm Lockable Terminal Block and DC Jack for redundancy
Input Voltage	3-Pin 5.08mm Terminal Block: 9-30VDC; DC Lockable Jack 5VDC
Power Consumption	<9W
Power Redundancy	Yes
Isolation	3kV (-Sis versions only)
Reverse Polarity Protection	Yes

Physical Characteristics	Value
Dimension (W x H x D)	75 mm x 85 mm x 28 mm (without wall-mount part) SE5202-TB/SE5202-Sis: 74.5 x 108.2 x27.5mm (with wall-mount part) SE5202-DB: 80.3 x 108.2 x27.5mm (with wall-mount part and DB9 connector) SE5202-SFP-TB: 76.6 x 108.2 x 27.5mm (with wall-mount and SFP) SE5202-SFP-DB: 81.4 x 108.2 x 27.5mm (with wall-mount SFP and DB9)
Weight	200g
Installation	Wall-Mount or DIN-Rail (optional kit)
Reset Button	Yes

Environmental Limits
Operating Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Storage Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity	5 ~ 95% RH, (non-condensing)

Software
Protocols	TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1/v2cv3
Configuration	Atop Management Utility, Web UI, Telnet, CLI
VirtualCOM	Windows/Linux redirection software
Link Modes - TCP Client	Single destination or VirtualCOM
Link Modes - TCP Server	4 Connections; VirtualCOM or reverse Telnet
Link Modes - UDP	Up to 4 Ranges IP

Certification	Standard
Safety	EN62368-1
EMC	FCC Part 15, Subpart B, Class A EN 55032, EN61000-6-4 EN 61000-3-2 EN 61000-3-3 EN 55024, EN61000-6-2
RoHS	Yes

Standard	Item	Test point	Value	Level
IEC 61000-4-2	ESD	Contact Discharge Air Discharge	±4KV ±8KV	2 3
IEC 61000-4-3	RS	80-1000MHz	10(V/m)	3
IEC 61000-4-4	EFT	AC Power Port DC Power Port Signal Port	±2.0KV ±2.0KV ±1.0KV	3 3 3
IEC 61000-4-5	Surge	AC Power Port AC Power Port DC Power Port DC Power Port Signal Port	Line-to-Line±1.0KV Line-to Earth±2.0KV Line-to Line ±0.5KV Line-to Line ±0.5KV Line-to-Earth±1.0KV	3 3 2 1 2
IEC 61000-4-6	CS	0.15-80MHz	10 Vrms	3
IEC 61000-4-8	PFMF	Enclosure	30A/m	3
IEC 61000-4-11	DIP	AC Power Port	-	-

Certification	Standard
Shock	MIL-STD-810F Method 516.5
Drop	MIL-STD-810F Method 516.5
Vibration	MIL-STD-810F Method 514.5 C-1 & C-2
Warranty	5 Years
MTBF	61.87

MODEL NAME	PART NUMBER	LAN	Serial	Other features
SE5202-DB	1P1SE520200001G	1x 10/100 RJ45	2x D-Sub 9	-
SE5202-TB	1P1SE520200002G	1x 10/100 RJ45	2x 5-pinTerminal Block	-
SE5202-Sis	1P1SE520200003G	1x 10/100 RJ45	2x 5-pinTerminal Block	3kV Serial Isolation
SE5202-SFP-DB	1P1SE520200004G	1x 100Mbps SFP	2x D-Sub 9	-
SE5202-SFP-TB	1P1SE520200005G	1x 100Mbps SFP	2x 5-pinTerminal Block	-

MODEL NAME	PART NUMBER	DESCRIPTION
UN315-1212 (US-Y)	50500151120003G	Y-Type power adapter, 100~240VAC input, 1.25A @12VDC output, US plug
UNE315-1212 (EU-Y)	50500151120013G	Y-Type power adapter, 100~240VAC input, 1.25A @12VDC output, EU plug
UV305-0510 US-DC	50500051500005G	DC jack (5.5*2.1*9.5mm);100~240VAC input, 1A @ 5VDC output, US plug, LV VI
UVE305-0510 EU-DC	50500051500015G	DC jack (5.5*2.1*9.5mm);100~240VAC input, 1A @ 5VDC output, EU plug, LV VI
2AAU005B-EU	50500051500014G	DC jack (5.0/2.1/9.5 mm) with Lock power adapter, 100~240VAC input, 1.0A @ 5 VDC output, EU plug, LV VI
2AAU005B-US	50500051500004G	DC jack (5.0/2.1/9.5 mm) with Lock power adapter, 100~240VAC input, 1.0A @ 5 VDC output, US plug, LV VI
ADP-DB9(F)-TB5	59906231G	Female DB9 to Female 3.81mm TB5 Converter
ADP-DB9(M)-DB9(F)	59901411G	SE_MB52XX DB9 Pin assignment to SE_MB50XX DB9 Pin assignment
DK-25	30200000000022G	Plastic DIN Rail Kit
AXFD-1314-0523	522AXFD1314001G	SFP Transceiver;155Mbps, Multi-mode;1310nm;2km;-40~85, DDMI
AXFD-1314-0553	522AXFD1314011G	SFP Transceiver;155Mbps, Single-mode;1310nm;30km;-40~85, DDMI
