SE5916A Series

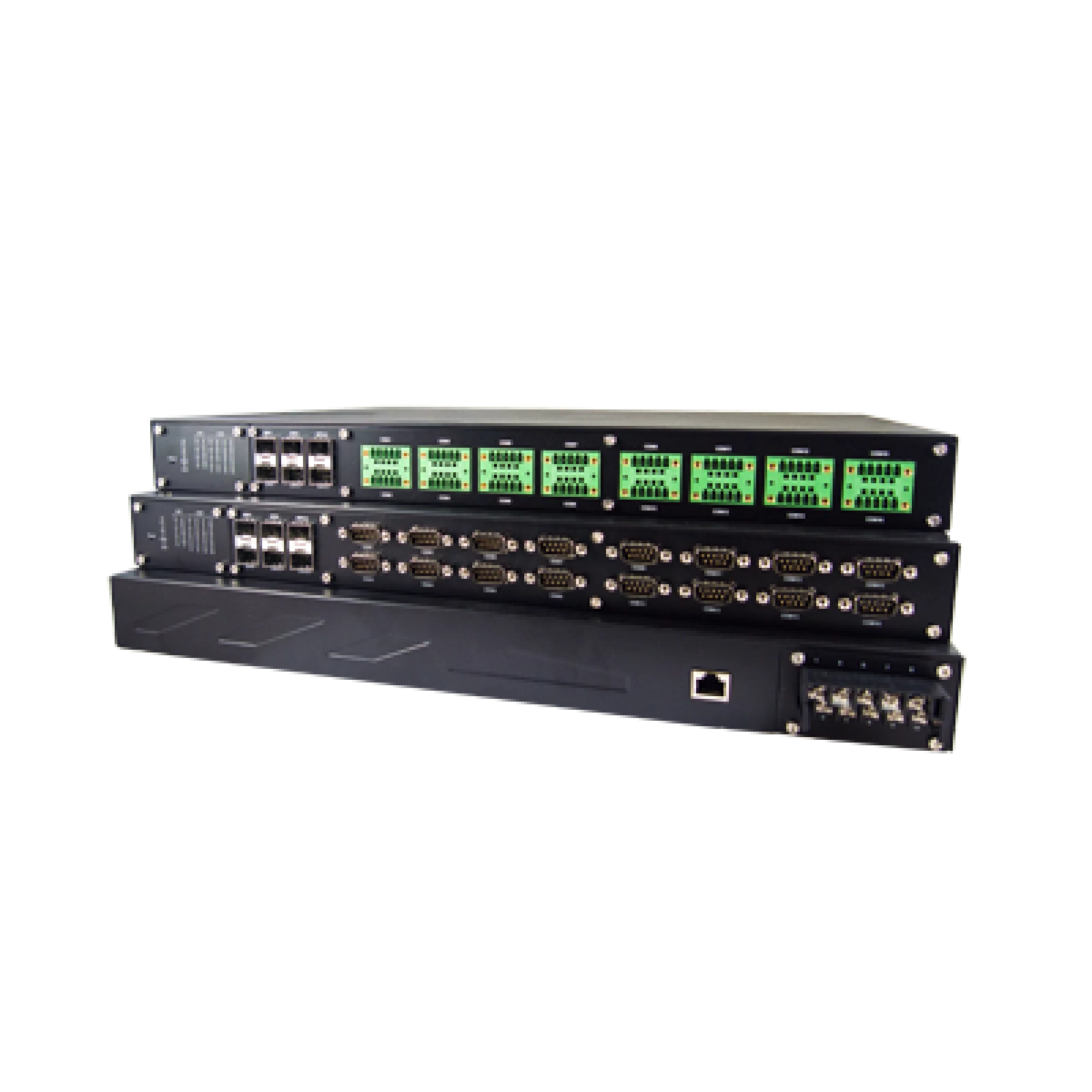

16-Port IEC61850-3 Certified Industrial Rack-Mounted Secure Serial Device Server

  • Remotely monitor, manage, and control industrial field devices
  • IEC61850-3 certified, can be easily set up into IEC61850-3 substations
  • Industrial EMC protection, wide temperature operation, -40°C~80°C
  • Redundant Power Input for fault protection, either 24~48 VDC or High- Voltage AC/DC (100~240VAC or 100~370VDC)
  • 6 Fast-Ethernet interfaces, either RJ45 or SFP slot
  • 16 RS-232/RS-485/RS-422 Serial ports, with or without isolation
  • TCP Server/Client, UDP, Virtual COM and Tunneling modes supported
  • Embedded security with OpenVPN, PPTP and IPsec VPN support
  • Configuration via Web Browser / Telnet/ Windows Utility

Make Serial Devices Ready to the Network The Industrial Serial Device Server SE5916A is a high-profile, high performance wide temperature gateway for Ethernet (TCP/IP) and serial signal communications; allowing almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, it offers full-duplex and bi-directional data seamlessly between the serial port and the Ethernet network. Advanced embedded security SE5916A embeds IPsec VPN Encryption, that allows you to tunnel your data securely throught the internet and prevent unauthorized control of your Serial Devices by malicious people. Easy to Use Flexible configuration options enable this unit to be setup over Ethernet by Telnet, Web Browser, or our Windows Utility. Packed in a rugged metal housing for 19” rack mount with a redundant 24-48 VDC or High Voltage AC/DC power input, SE5916A is ideal for mission-critical applications in utilities and especially in power substations. ATOP Virtual COM software provides a virtual environment for applications when accessing the device through TCP. Rugged and flexible for advanced developments SE5916A embeds high EMC protection, wide temperature operation, programming and installation flexibility in one device. The IEC61850-3 certified hardware makes it the most advanced Ethernet-to-Serial or Computing option, while the dual power supply provides additional redundancy in case of power failure. High-Voltage option makes the device suitable for High-Voltage AC or DC inputs (100~240 VAC or 100~370VDC) that are common in substation environments., without additional cabling and power supply. SDK versions* allow you to make use of the powerful embedded TI ARM CPU, and develop your own applications on top of ATOP's reliable SDK transforming your deivce in a cost effective, performing industrial computing platform. * More information available, please contact Atop representative or refer to SDK datasheet
Network Interface
Speed IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X) - RJ45 version IEEE 802.3u 100Base-FX - SFP version
Network mode Independent IP address (6 ports) or Independent IP address (4 ports) + Unmanaged Switch (3 ports, including LAN4)
Connector ports RJ45 x 6 (RJ45 version) SFP x 6 (SFP version)
Serial Interface
Connector D-Sub9 (DB models, supporting only 5-pin RS-232 mode) or 5.08mm 5-Pin Terminal block (TB Models)
Ports 16
Mode RS-232/422/485 Software selectable
Serial Isolation 3 kV (Sis versions only)
Baud Rate 1,200 ~ 921,600 bps software selectable
Data Bits 5, 6, 7, 8 software selectable
Stop Bits 1, 2 software selectable
Flow Control None, Xon/Xoff, RTS/CTS
Software
Protocols IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, HTTP, HTTPS, Telnet, RFC2217, 802.1D-2004 RSTP, Security through OpenVPN Client/Server and IPsec (host-to-host or host-to-side) with up to 37.9Mbps VPN throughput, PPTP, and SMTP/TLS
Configuration Atop Management Utility, Web UI, Telnet, Serial Console
VirtualCOM Windows/Linux redirection software
Link Modes - TCP Client Single destination or VirtualCOM
Link Modes - TCP Server 4 Connections; VirtualCOM or reverse Telnet
Link Modes - UDP Up to 4 Ranges IP
Power Value
Rated Supply Voltage Redundant 24-48 VDC or Redundant 100-240 VAC/ 100-370 VDC (HV Series)
Input Voltage Range Redundant 19.2-52.8 VDC or Redundant 85-264 VAC/ 100-370 VDC (HV Series)
Input Current 0.73 A @ 24 VDC 0.35 A @ 100 VAC 0.20 A @ 100 VDC
Power Consumption Approximately 20 W (Max)
Connector 10-Pin Terminal Block
Power Redundancy Yes
Reverse Polarity Protection Yes
Physical Characteristics Value
Housing IP30 SPCC housing
Dimension (W x H x D) 440.6 x 44 x 309 mm (1U Rack-mount)
Weight 4,000g
Installation 19’’ Rack-Mount (Kit included)
Reset Button Yes
Environmental Limits
Operating Temperature -40°C~80°C (-40°F~176°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Ambient Relative Humidity 5%~95%, 55°C (Non-condensing)
Certification Standard
Safety EN61010-1, EN 61010-2-201
EMC FCC Part 15, Subpart B, Class A, EN 55032, Class A, EN 61000-6-2, EN 61000-3-2, EN 61000- 3-3, EN 55024, EN 61000-6-4, IEC 61850-3 / IEEE 1613
Standard Item Test Value Level
IEC 61000-4-2 ESD Contact Discharge ±8kV 4
IEC 61000-4-2 ESD Air Discharge ±15kV 4
IEC 61000-4-3 RS Radiated (enclosure) 20 V/m 3
IEC 61000-4-4 EFT AC Power Port ±4.0kV 4
IEC 61000-4-4 EFT DC Power Port ±4.0kV 4
IEC 61000-4-4 EFT Signal Port ±4.0KV 4
IEC 61000-4-5 Surge AC Power Port (L-2-L) Line-to Line±2.0KV 4
IEC 61000-4-5 Surge AC Power Port (L-2-E) Line-to Earth±4.0KV 4
IEC 61000-4-5 Surge DC Power Port (L-2-L) Line-to Line±1.0KV 3
IEC 61000-4-5 Surge DC Power Port (L-2-E) Line-to Earth±2.0KV 3
IEC 61000-4-5 Surge Signal Port (L-2-E) Line-to Earth±4.0KV 4
IEC 61000-4-6 CS AC Power Port 10 V rms 3
IEC 61000-4-6 CS DC Power Port 10 V rms 3
IEC 61000-4-6 CS Signal Port 10 V rms 3
IEC 61000-4-8 PFMF Enclosure 100 A/m 1000 A/m (1sec.) 5 6
IEC 61000-4-11 DIP AC Power Port 30% reduction (Voltage Dips), 1 period 60% reduction (Voltage Dips), 50 period 100%, reduction (Voltage interruptions), 5 period 100% reduction (Voltage interruptions), 50 period -
Certification Standard
Shock MIL-STD-810F Method 516.5
Drop (Freefall) MIL-STD-810F Method 516.5
Vibration MIL-STD-810F Method 514.5 C1 & C2
RoHS Yes
MTBF PG5900A: 16.60 years PG5916A-6SFP-Sis-HV: 9.18 years PG5916A-6SFP-Sis: 8.63 years
Warranty SE5916A-6SFP-Sis-HV: 9.18 years SE5916A-6SFP-Sis: 8.63 years PG5900A / PG5908A / PG5916A: 5 years
MODEL NAME PART NUMBER DESCRIPTION POWER INPUT ETHERNET PORTS SERIAL PORTS
SE5916A-6SFP 1P1SE5916A0001G Ind. 16 Port Serial Server, 100BASE-FX SFP slot, DB9 24~48 VDC 6 (SFP) 16 (DB9)
SE5916A-6SFP-TB 1P1SE5916A0002G Ind. 16 Port Serial Server, 100BASE-FX SFP slot, TB5 6 (SFP) 16 (TB5)
SE5916A-6SFP-Sis 1P1SE5916A0003G Ind. 16 Port Serial Server, 100BASE-FX SFP slot,Isolated 6 (SFP) 16 (TB5)
SE5916A-6SFP-HV 1P1SE5916A0004G Ind. 16 Port Serial Server, 100BASE-FX SFP slot, DB9 100/240 VAC or 100/370 VDC 6 (SFP) 16 (DB9)
SE5916A-6SFP-TB-HV 1P1SE5916A0005G Ind. 16 Port Serial Server, 100BASE-FX SFP slot, TB5 6 (SFP) 16 (TB5)
SE5916A-6SFP-Sis-HV 1P1SE5916A0006G Ind. 16 Port Serial Server, 100BASE-FX SFP slot, Isolated 6 (SFP) 16 (TB5)
SE5916A 1P1SE5916A0008G Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, DB9 24~48 VDC 6 (RJ45) 16 (DB9)
SE5916A-TB 1P1SE5916A0009G Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, TB5 6 (RJ45) 16 (TB5)
SE5916A-Sis 1P1SE5916A000AG Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, Isolated 6 (RJ45) 16 (TB5)
SE5916A-HV 1P1SE5916A000BG Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, DB9 100/240 VAC or 100/370 VDC 6 (RJ45) 16 (DB9)
SE5916A-TB-HV 1P1SE5916A000CG Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, TB5 6 (RJ45) 16 (TB5)
SE5916A-Sis-HV 1P1SE5916A000DG Ind. 16 Port Serial Server, 10/100BASE-T(X) RJ45, Isolated 6 (RJ45) 16 (TB5)
MODEL NAME PART NUMBER DESCRIPTION
SDR-75-24 50500752240001G 75W/3.2A DIN-Rail 24VDC power supply with 88~264VAC / 124~370VDC input
GDC-120 59906861G 120mm copper woven grounding cable
ADP-DB9(F)-TB5 59906231G Female DB9 to Female 3.81 TB5 Converter
AXFD-1314-0523 522AXFD1314001G SFP Transceiver;155Mbps, Multi-mode;1310nm;2km;-40~85, DDMI
AXFD-1314-0553 522AXFD1314011G SFP Transceiver;155Mbps, Single-mode;1310nm;30km;-40~85, DDMI
