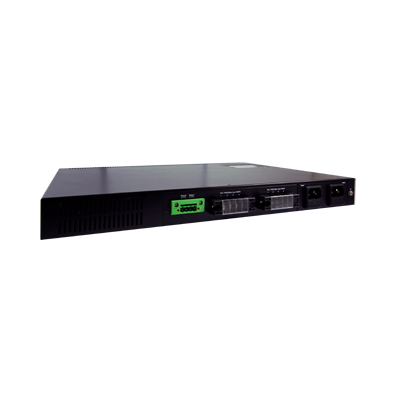

RHG7628 Series

Flexible: ATOP's high-density RHG7628 Managed Rack-mount switch will provide you the flexibility your application needs. You will be able to choose among 8 different Layer-3 Routing Core versions (based on power supply and uplink port configurations) and five different 4/8-Port modules and customize your device in a very simple way.

Designed for PoE, in wide temperature: RHG7628 supports up to 24 Gigabit ports in any 8 or 4-port multiple configuration. Specifically designed for bringing power through Ethernet cable virtually anywhere, a maximum output Power over Ethernet of 720W over the 24 ports is allowed (PoE/PoE+ configuration - 802.3af/at).

Available in 3 power input variants, it is EN 60950-1:2006 certified and designed to handle the harshest environments. Its fanless design and EMC Level 3 protection guarantee operations within -40 and +75°C, with 24 PoE ports running full power and makes it suitable to be used for almost every application.

Powerul and versatile: RHG7628 supports IPv4 Static Routing, RIPv1/v2, OSPFv2, IGMP, IGMP Snooping, PIM Dense Mode and Sparse Mode, DVMRP and VRRP for Routing Redundancy. Then, it embeds all features of RHG7528 (layer-2 version), allowing (through ERPS) network self-recovery down to 20ms on full load. Almost any redundant ring topology is supported, such as ITU-T G.8032 RPS Ring, IEEE802.1D-2004 RSTP, STP, MSTP, MRP (Client), iA-Ring, iA-Chain and many compatible rings. Endless additional features are provided.

Automation and IoT ready: conforming with Profinet CC-B v2.33 makes RHG7628 the perfect candidate for being the backbone of your Industrial automation network.

The RHG7628 Series is fully EN50155-certified to ensure reliable performance under a variety of power supply conditions, such as voltage variations, power interruptions, and supply changeovers, and it complies with essential sections of EN50121-4 for ground equipment.

Secure: The first Industrial Managed Secure Switch! Protect your LAN from Eavesdropping and impesronation through 802.1AE MACsec. With no additional latency and 100% Gigabit Throughput guarantee, dedicated modules can provide you the internal ultimate security solution.

Environmental Limits	Value
Operating Temperature	-40°C to +75°C (-40°F to +167°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Ambient Relative Humidity	5% to 95% (Non-condensing test @ 55°C)

Physical Characteristics
Housing	IP30 SPCC metal housing
Dimension (W x H x D)	440 x 44 x 340 mm (not including screws and rack-mount kit)
Weight	5Kg (not including module but module cover only)
Installation	1U Rack-mount, Rack-mount kit included

Power
Rated Supply Voltage	Switch Core	DC version: redundant 48-57 VDC AC version: single 110-220 VAC Redundant AC version: dual 110-220 VAC Mixed AC/DC -Redundant: 1x 110-220VAC & 1x 48-57VDC
	PoE	2x 48-57 VDC
Input Voltage	Switch Core	DC version: redundant 48-57 VDC AC version: single 99-242 VAC Redundant AC version: dual 99-242 VAC Mixed AC/DC -Redundant: 1x 99-240VAC & 1x 48-57VDC
	PoE	2x 48-57 VDC
Max. Input Current	CPU board AC/ redundant AC: 64 W@110 VAC (with input current 0.6 A) CPU board redundant DC : 32.7 W@48 VDC (with input current 0.68 A) Full load of 802.3af PoE: 370 W@45 VDC (with input current 8.4 A) Full load of 802.3at PoE+: 720 W@51 VDC (with input current 14.4 A)
Connectors	2x Lockable 5-pin terminal blocks for PoE power input (all models) 2x Lockable 3-pin terminal blocks for DC power input (DC models) 1-2x AC power input (1x for non-redundant/-MR models; 2x for -R model ) 1x Lockable 3-pin terminal blocks for DC power input (-MR model)
Relay Output	2 x Relay Output with current carrying capacity of 1A @ 24 VDC
Reverse Polarity Protection	Yes

Ethernet	Standard	-
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3ae For 10 Gigabit Ethernet Fiber IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.1ae for MAC security (MACsec) – on RHG7X28-M4 & RHG7X28-M5 IEEE 802.3ad for Port Trunk with LACP IEEE 802.3az for Energy Efficient Ethernet
Protocols	IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping, GARP, GMRP, GVRP, SNMPv1/v2c/ v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option 66/67/82, BootP, RARP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Client),LLDP,802.1x,EAP,RADIUS,TACACS+,Mirror port, QoS, ACL
Layer-3 Switching Protocols	Routing: IPv4 Unicast static routing, RIP v1/v2, OSPFv2, Multicast: IGMPv1/v2/v3, DVMRP, PIM-DM, PIM-SM, PIM-SSM Routing Redundancy: VRRP (Virtual Router Redundancy Protocol)
Redundancy	ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring
Time Synchronization	Network Synchronization	NTP Server/Client, SNTP
Time Synchronization	Precision Network Synchronization	IEEE1588v1 OC/BC (Software) IEEE1588v2 TC (Hardware) - ns accuracy IEEE1588v2 OC/BC (Software)
Automation Profiles	Profinet v2.33 CC-B certified, Modbus/TCP device status registers provided
SNMP MIB	MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2674
Uplink Port	4 x 1 Gigabit or 4 x 10 Gigabit SFP
Switching Module Slots	3

Switch Properties	Value
Priority Queues	8
VLAN Table	4,096
MAC-Based VLAN	512
VLAN ID Range	VID 1 to 4,094
Static IGMP Groups	128
Dynamic IGMP Groups	256
MAC Table Size	16k
Packet Buffer Size	1.5 MB
Jumbo Frame	9 K (9216 Bytes)
Switching Fabric Capacity	56 Gbps (4SFP model) / 128 Gbps (410GSFP model)
Maximum throughput	41.67 Mpps (4SFP model) / 95.24 Mpps (410GSFP model)

Certification	Standard
Shock	MIL-STD-810G Method 516.5
Freefall	MIL-STD-810F Method 516.5
Vibration	MIL-STD-810F Method 514.5 C-1 & C-2
Rail Traffic	EN50155 / EN50121-4 Certified
MTBF	12.20 years
Warranty	5 Years
RoHS	Yes

Standard	Item	Test	Value	Level
IEC 61000-4-2	ESD	Contact Discharge	±8kV	4
IEC 61000-4-2	ESD	Air Discharge	±15kV	4
IEC 61000-4-3	RS	80-1000MHz	10 V/m	3
IEC 61000-4-4	EFT	AC Power Port	±2.0kV	3
IEC 61000-4-4	EFT	DC Power Port	±2.0KV	3
IEC 61000-4-4	EFT	Signal Port	±2.0KV	4
IEC 61000-4-5	Surge	AC Power Port (L-2-L)	±1.0KV	3
IEC 61000-4-5	Surge	AC Power Port (L-2-L)	±2.0KV	3
IEC 61000-4-5	Surge	DC Power Port (L-2-L)	±1.0KV	3
IEC 61000-4-5	Surge	DC Power Port (L-2-E)	±2.0KV	3
IEC 61000-4-5	Surge	Signal Port (L-2-E)	±2.0KV	3
IEC 61000-4-6	CS	0.15-80MHz	10 V rms	3
IEC 61000-4-8	PFMF	Enclosure	AC 50Hz 10A/m	4
IEC 61000-4-11	DIP	AC Power Port	-	-
* EMC level 3 on CS/RS pass conditional to the use of Shielded Ethernet Cable

Certification	Standard
Safety	UL 60950-1 2nd Ed. /CSA C22.2 No.60950-1-07 2nd Ed. / EN 60950-1 / UL 62368-1 / IEC 62368-1
EMC	FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4,

Optional Accessories
MODEL NAME	PART NUMBER	DESCRIPTION
AC power cable (US)	50801341G	AC power cable (SS004-240) for US region
AC power cable (EU plug)	50801351G	AC power cable (SS004-241) for EU region
SDR-240-48	50502401480001G	DIN-rail power supply; 48-55 VDC, 100-240 VAC; 240 W@48 VDC (w/ input current 5 A)
SDR-480-48	50504801480001G	DIN-rail power supply; 48-55 VDC, 100-240 VAC; 480 W@48 VDC (w/ input current 10 A)
AXFD-1314-0523	522AXFD1314001G	SFP Transceiver, 155Mbps, Multi-mode, 1310nm, 2km, -40°C to +85°C, DDMI
AXFD-1314-0553	522AXFD1314011G	SFP Transceiver, 155Mbps, Single-mode,1310nm, 30km, -40°C to +85°C, DDMI
AXGD-5854-0513	522AXGD5854001G	SFP Transceiver, 1250Mbps, 850nm, Multi-mode, 550m, 3.3V, -40°C to +85°C, DDMI
AXGD-1354-0523	522AXGD1354001G	SFP Transceiver, 1250Mbps, 1310nm, Multi-mode, 2km, 3.3V, -40°C to +85°C, DDMI
AXGD-1354-0533	522AXGD1354011G	SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 10km, 3.3V, -40°C to +85°C, DDMI
AXGD-3354-0593	522AXGD3354001G	SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 40km, 3.3V, -40°C to +85°C, DDMI
AXXE-5886-05B3	522AXXE5886001G	SFP Transceiver, 10Gbps Multi, 850nm, 300m, -40°C to +85°C

MODEL NAME	PART NUMBER	Description
RHG7X28-M1	1P1RHG7X28M101G	Module with 8x Gb PoE RJ-45
RHG7X28-M2	1P1RHG7X28M201G	Module with 8x Gb RJ-45
RHG7X28-M3	1P1RHG7X28M301G	Module with 8x Gb SFP Slots
RHG7X28-M4	1P1RHG7X28M401G	Module with 8x Gb MACsec RJ-45
RHG7X28-M5	1P1RHG7X28M501G	Module with 8x Gb MACsec SFP Slots

MODEL NAME	PART NUMBER	DESCRIPTION
		1Gb Uplink SFP	10Gb Uplink SFP	110-220 VAC input	48-57 VDC input	48-57 VDC PoE input
RHG7628-CPU-4SFP	1P1RHG7628CPU1G	4	-	1	-	2
RHG7628-CPU-4SFP-R	1P1RHG7628CPU2G	4	-	2	-	2
RHG7628-CPU-4SFP-DC	1P1RHG7628CPU3G	4	-	-	2	2
RHG7628-CPU-410GSFP	1P1RHG7628CPU4G	-	4	1	-	2
RHG7628-CPU-410GSFP-R	1P1RHG7628CPU5G	-	4	2	-	2
RHG7628-CPU-410GSFP-DC	1P1RHG7628CPU6G	-	4	-	2	2
RHG7628-CPU-4SFP-MR	1P1RHG7628CPU7G	4	-	1	1	2
RHG7628-CPU-410GSFP-MR	1P1RHG7628CPU8G	-	4	1	1	2
