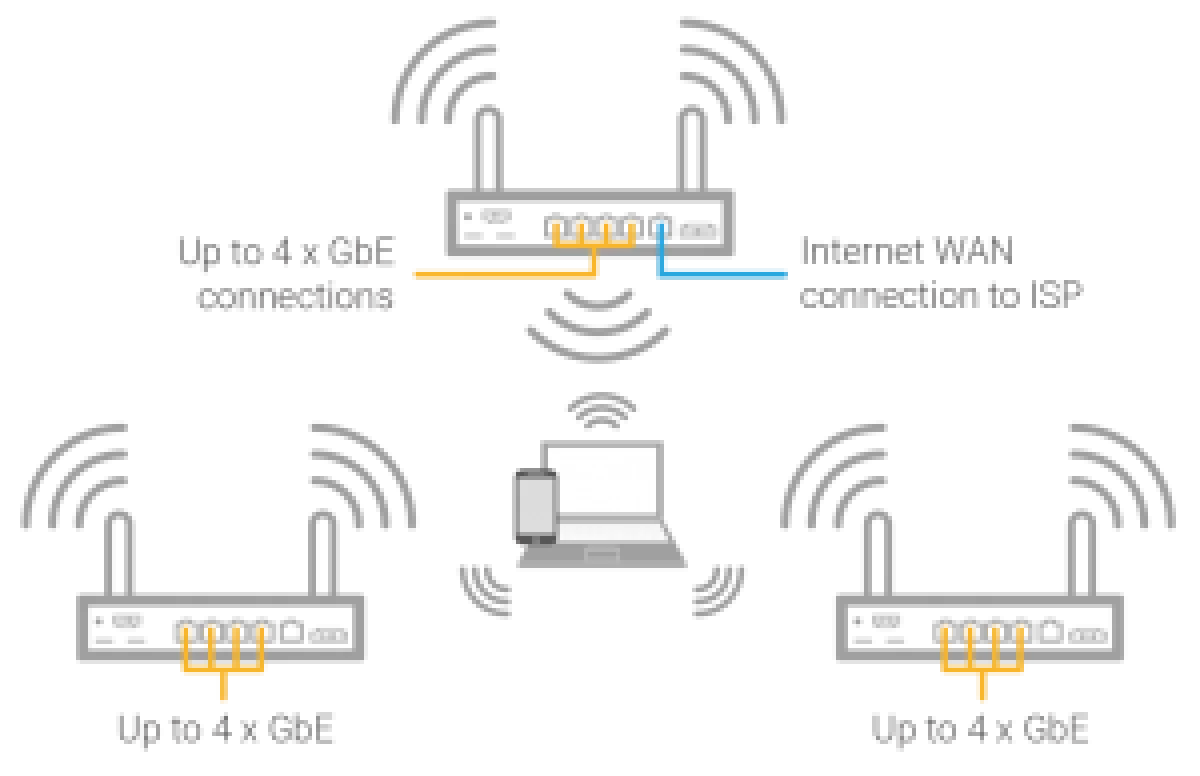

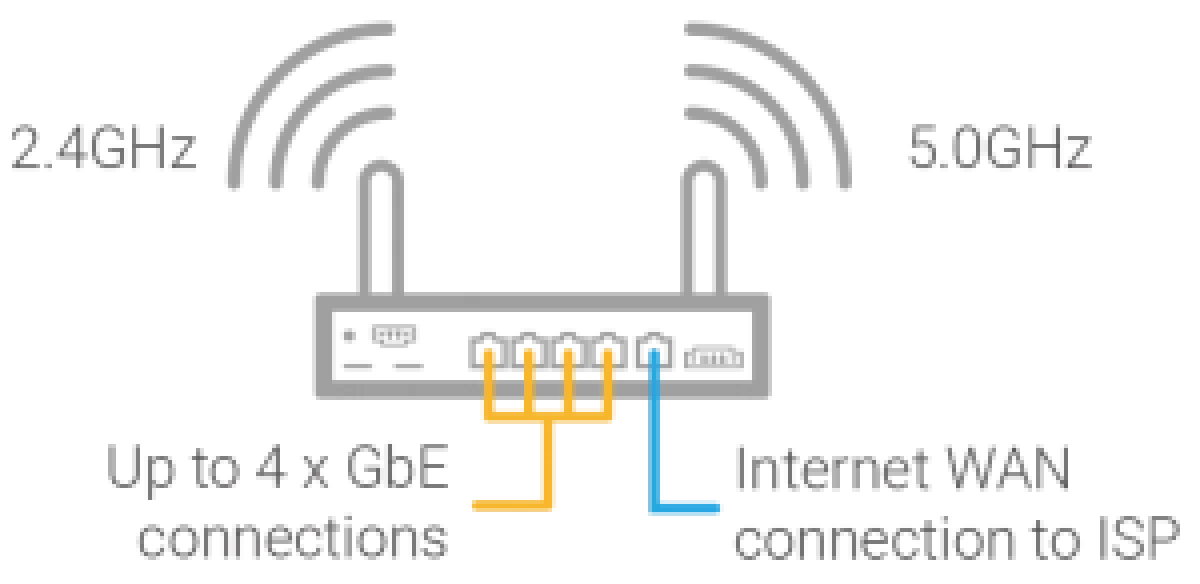

ATOP AWR is an advanced device that allows a very tangible scale-up of almost any industrial wireless infrastructure. In addition to high EMC protection, wide-temperature operation, superb hardware and advanced features, AWR will provide high-speed internet access with load balancing and high degrees of security, high speeds and advanced configuration options. Quad-ARM Cortex A7 CPU: AWR integrates an industrial-grade Quadcore A7 ARM CPU, enabling the processing power you need to filter heavy traffic over firewalls, routing, forwarding and security meansures. Wi-Fi Mesh: AWR’s advanced chipset allows you to set up several devices as a mesh network, achieving a self-healing network that adjusts its topology based on need--perfect for dynamic applications. High-Performance: With its integrated IEEE802.11ac wave-2 feature and supporting 2x2 concurrent MUMIMO RF, AWR provides high-throughput connections through 2.4 GHz and 5.0 GHz bands. Security: Integrating firewall, zone forwarding, and VPN features, ATOP AWR allows you to connect your industrial network to the internet without fearing intrusions into your organization data. Harsh Environments: ATOP AWR is proven to run at its maximum loading in the harshest EMC and climate environments. Reliability: With a rugged metal housing and power redundancy, AWR is resistive to damage in harsh industrial environments.   APPLICATION CASE As a Wi-Fi DBDC Router AWR5805’s simplest operating mode is as a router/access point. Use it to connect to the internet through your broadband provider via PPPoE, Static IP or DHCP and provide internet connection to Wi-Fi and wired clients. With AWR you can define your own wireless access policy and set up a Firewall and VPN connection based on your needs.   As a Wi-Fi Mesh Primary Router AWR5805 is designed to act as a mesh router or as a mesh node, and the configuration of one or both radios to work in mesh mode takes barely any time. No more fussing with topology changes or complicated wiring! With Wi-Fi mesh, all nodes can communicate with each other and the transmission paths are dynamically adjusted if a change in signal strength or topology is detected. So, even if a device is temporarily unaccessible due to interference or position, the network will still work perfectly. Mesh functionality can be combined with all other features of AWR5805.

Hardware Specifications
CPU	ARM Cortex A7, Quad-Core
Watchdog	Hardware WD Reset: Yes

Network Interface
Wi-Fi	802.11ac wave 2(5GHz), 802.11a/b/g/n(2.4GHz/5GHz) MU-MIMO 2x2 (2 streams) Wi-Fi Mesh ready
Ethernet ports	Standard	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X)
Ethernet ports	Ports	5x 10/100/1000 BASE-TX RJ-45 1 x WAN 4 x LAN
Antennas
Wi-Fi	2x SMA(M) antennas
External IO Interfaces
Default/Reset Button	1 key
SD Slot	1x micro-SD slot
LED Indicators	PWR, 2.4GHz Wi-Fi, 5.0 GHz Wi-Fi, LAN, WAN

Power
Rated Supply Voltage	DC Power : 12-48V
Input Voltage Range	DC Power : 10.8-52.8V
Consumption	<18W
Redundancy	No
Connector	3-pin Terminal block
Reverse Polarity Protection	Yes
PoE	PoE PD, 802.3at, Mode A

Physical Characteristics
Housing	Metal housing

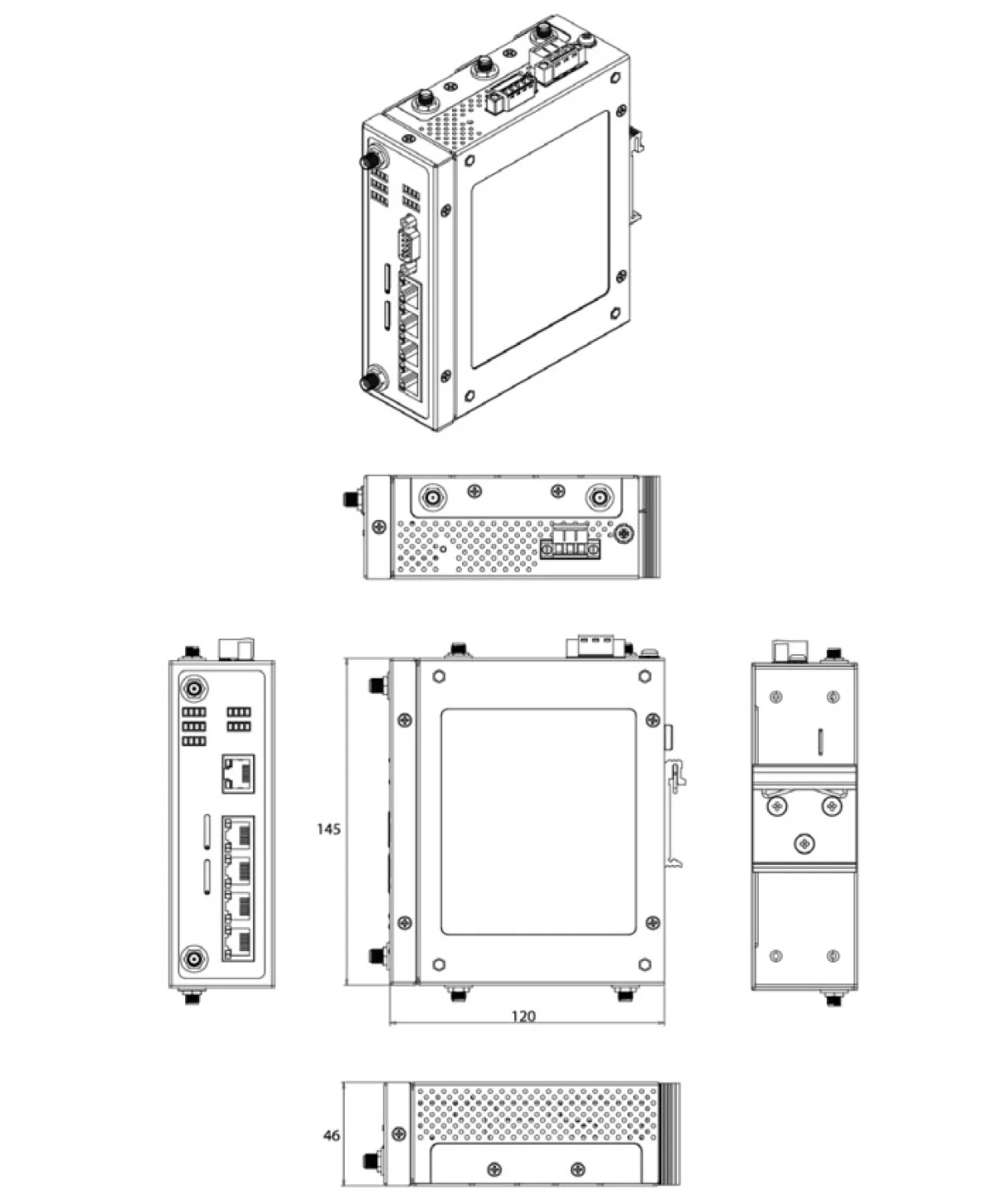

Dimension L x W x H (mm)	145 x 120 x 46
Weight	726g
Installation	DIN-Rail or Wall-Mount (optional kit)
Ingress Protection Rating	IP30 protection

Environmental Limits
Operating Temperature	-40°C to +75°C (-22°F to +158°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Ambient Relative Humidity	5% to 95% RH, (non-condensing

Software Specifications
Internet Connection
Access	APN
Authentication	CHAP/PAP/Auto
Network
IPv4/IPv6	DHCP server
	DHCP Client/Static IP/PPPoE
Connection Protocol/Service	Telnet, SSH, SCP, Http, Https, SNMP
Industrial Protocol	NTP, DNS, 802.1Q VLAN, QoS, VRRP, MQTT
Security
Firewall	Access control list (ACL)
	Port Forwarding
	Attack Prevention (Inserted after Port forwarding)
VPN	IPSEC, OPEN-VPN, LT2P, PPTP Server, GRE
Reliability
Cellular Backup	Dual SIM auto-switch
WAN Backup	Cellular and Ether WAN redundancy
Schedule operation	Schedule control of application
WLAN
Wi-Fi Connection	AP (802.11 a/b/g/n/ac), Mesh
Wi-Fi Security	OWE/WPA-PSK/WPA2-PSK/WPA3-PSK (SAE)
Management
System Configuration	WEB, Telnet, SSH
Firmware upgrade	WEB
System Log	SD Storage, remote logger, local flash
SNMP	SNMP v1/v2/v3
Diagnostics	Ping, Traceroute, Nslookup
Statistics
Statistics	Memory, Mobile, WAN, Wireless, LAN

Certification	Standard
Safety	EN62368-1
EMC	EN55032, EN55024, EN55035, EN301489-1, EN301489-17, FCC Part 15B
Wi-Fi	EN300328 for WIFI b/g/n 2.4G, EN301893 for WIFI a/n/ac 5G, EN62311 MPE Report, Part 15C for 2.4G b/g/n, Part 15E for 5G B1/B4 a/n/ac

Standard	Item	Test	Value	Level
IEC 61000-4-2	ESD	Contact Discharge Air Discharge	±6KV ±8KV	3 3
IEC 61000-4-3	RS	Enclosure Port	3 (V/m) , 80-1000MHz 3 (V/m), 1.4-2.0GHz 3 (V/m), 2.0~2.7GHz	3 3 3
IEC 61000-4-4	EFT	DC Power Port Signal Port	±2.0KV@ 5.0kHz ±1.0KV @ 5.0kHz	3 3
IEC 61000-4-5	Surge	DC Power Port Signal Port	Line-to-Line ±1KV Line-to-Earth ±2KV Line-to-Earth ±2.0KV	3 3 3
IEC 61000-4-6	CS	DC Power Port Signal Port	3V, 150KHz to 80MHz, 80%AM 3V, 150KHz to 80MHz, 80%AM	2 2
IEC 61000-4-8	PFMF	Enclosure	1A/m (r.m.s), 50Hz or 60Hz	1

Certification
Shock	IEC 60068-2-27
Drop	IEC 60068-2-32
Vibration	IEC 60068-2-64
Others	RoHS, including 2015 amendment REACH Conflict Mineral Free
Warranty	5 years

MODEL NAME	ETHERNET	WI-FI	BT	LoRa	PoE	GPS
AWR5805	1x WAN, 4x LAN	802.11/a/b/g/n/ac	-	-	-	-
AWR5805P	1x WAN, 4x LAN	802.11/a/b/g/n/ac	-	-	Yes	-

MODEL NAME	PART NUMBER	DESCRIPTION
AD1048-24FS	50500481240001G	DIN-Rail Power Supply Input: 100-240VAC / 120-370VDC; Output: 2A@24VDC
UV336-1230	50500361120001G	Power adapter Input: 100-240VAC; Output: 3A@12VDC; US plug
